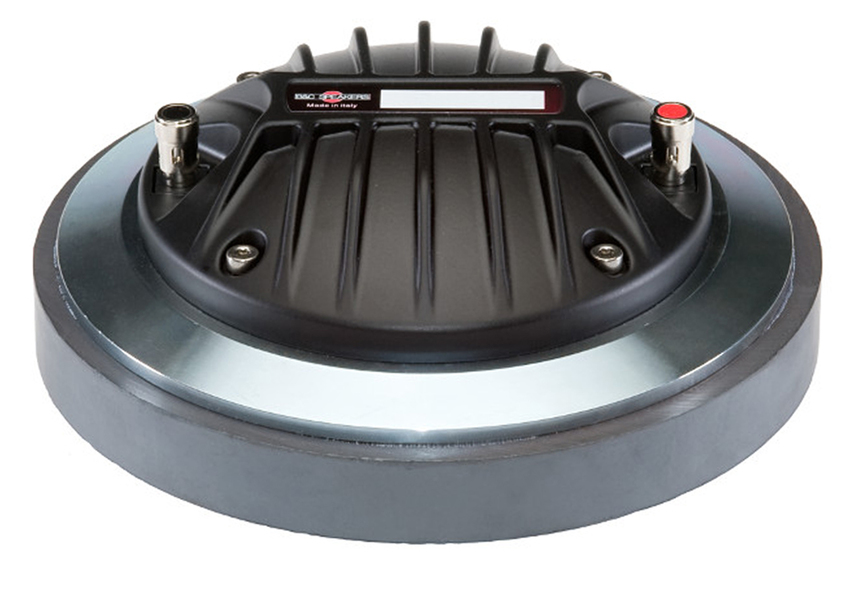

B&C HF Driver DE 95 TN
220 W continuous program power capacity
2" horn throat diameter
75 mm (3 in) CCAW voice coil
Titanium diaphragm
500 - 18000 Hz response
107.5 dB sensitivity
Shorting copper cap for extended HF response
- Driver mounted on B&C ME60 horn
- 2 hour test made with continuous pink noise signal (6 dB crest factor) within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated minimum impedance.
- Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
- Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
- 12 dB/oct. or higher slope high-pass filter.
